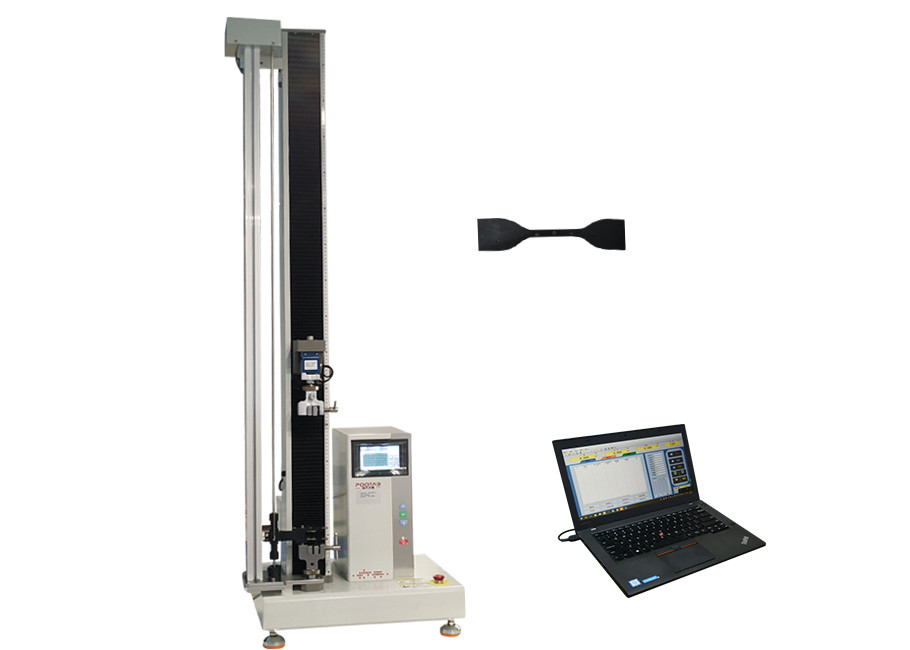

Computerized Tensile Tester With Large Deformation Extensometer For Dog Bones Shape Specimen

Application:

This tensile machine is suitable for flexible materials with large deformations such as rubber, plastic and leather. It can test the tensile strength, tear strength, elongation at break, and peel strength of rubber. Equipped with a large-deformation extensometer for measuring the deformation of the sample, which is suitable for testing the mechanical properties of materials with large deformation.

Tensile Tester Features :

1. The induction system uses Taiwanese sensors, which have high accuracy, good linearity and very stable performance
2. The power system adopts the Japanese Panasonic AC servo motor to ensure the synchronization accuracy of the transmission. It has the characteristics of high transmission accuracy, high efficiency, smooth transmission, low noise, and long service life without maintenance. The high-precision ball screw is driven by an imported motor and adopts full digital pulse control to achieve a wide range of test speeds ranging from 0.1 to 1000 mm/min, and complete the stretching, compression, bending, bending, etc. of metal and non-metal materials test.
3. The gauge length measurement system adopts Taiwan's high-precision large deformation extensometer measuring device, and cooperates with special software to accurately test the elongation rate of the rubber gauge length as "25mm".

Equipment Parameters :

Refer photos:

Perfect International Instruments Co.,Ltd, the excellent supplier of global testing machine and related services, was founded in 1997 ,Taiwan .Then, Dongguan factory was founded in 2003. It has been providing quality improvement solutions for rubber, plastics, footwear, food, daily chemical, paper, color printing packaging, suitcase handbags, electronic wire, textile, sports equipment, biochemical, pharmaceutical, household appliances, office equipment, aviation, aerospace, as well as the colleges and universities, research institute and other customers from area of scientific research and development.

Perfect International Instruments Co.,Ltd, mainly focus on research, manufacture and sales in Tensile Testing Machine, Universal Testing machine,Hydraulic Compression Testing Machine,Tensile Strength Tester Environmental Test Chamber,Temperature Humidity Test Chamber,Aging Oven, Hot Air Drying Oven,Salt Spray Chamber,Adhesive Tape Tester,Luggage Suitcase and Bags Test Equipment . The products meet UL, ASTM, JIS, GB, ISO, TAPPI, EN, BS...and other domestic and international standards.

Perfect Instruments has accumulated over 20 years of technology and experience, and has obtained more than dozens of patents, such as invention, utility model and appearance.Since 1997 into the domestic development, gradually for the adhesive testing industry, paper packaging industry, cosmetics, food and beverage, bags handbags and other industries to import foreign advanced quality detection technology and international advanced technology of detecting instrument.

Our ideal : To provide customers with the best solution to improve the quality of products, eliminate the defects of all products and use hidden dangers, and pursue to improve the quality of human life！
