Tensile Fracture Testing Machine Compressive Load 1000N
Machine Description: Electron Tensile Testing Machine is used in rubber, tires, hoses,
tapes, soles, plastics, films, acrylic, FRP, ABS, EVA, PU,
aluminum-plastic tubes, composite materials, waterproof materials,
fibers, textiles, wires and cables, paper, gold foil Testing and
analysis of mechanical properties such as tension, compression,
tearing, peeling (both 90 degrees and 180 degrees), etc., with
tapes, threads, springs, wood, medical packaging materials, tapes,
etc.
Detailed Parameters :
| Machine Name | Tensile Fracture Testing Machine Compressive Load |
| Model | PT-1170 | PT-1170B |
| Force Sensor | 20N,50N,100N,200N,500N,1000N,2000N,5000N |
| Display | force and extension display |
| Force Measure Accuracy | ±1.0% |
| Force Measure Resolution | 1/10,000 |
| Effective Measure Range | 1~100%F.S |
| Deformation Indication Accuracy | ±1.0% |
| Test Speed | 1～500mm/min |
| Test Travel | 850mm,exclude grip |
| Test Space | Front and back 120mm,right left no limit |
| Force Unit | kgf,gf ,N,kN,Ibf |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 |
| Deformation Unit | mm,cm,in |
| Stop Method | Upper and lower limit safety setting, emergency stop button,
program force and elongation setting, test piece damage sensing |
| Snap Point Method | Manually take points during the test and pre-set take points (20
points) |
| Computer Extension | No | Yes |
| Standard Configurations | 1 pair of grip, 1 micro printer, 1 power cord, 1 operation manual,
1 product certificate, 1 product warranty card | 1 pair of grip, 1 micro printer, 1 operating software, 1 software
,1 connection network cable, 1 power cord, 1 operation manual, 1
product certificate, 1 product warranty card |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 55kg |
| Motor | Stepper |
| Power Supply | 1 phase,AC220V,50/60Hz |
Features:
1. With automatic homing function that automatically returns to the
start of the test after the test is completed
2. With flexible viewing and printing functions of graphs, data
sheets, reports
3. High measurement accuracy, certified by a third-party testing
agency
4. Multilingual application function, adapt to different countries
5. High speed, low vibration, low noise motor drive device
6. Easy to operate, anyone can easily operate
7. A complete set of compact structure, high rigidity design,
strong

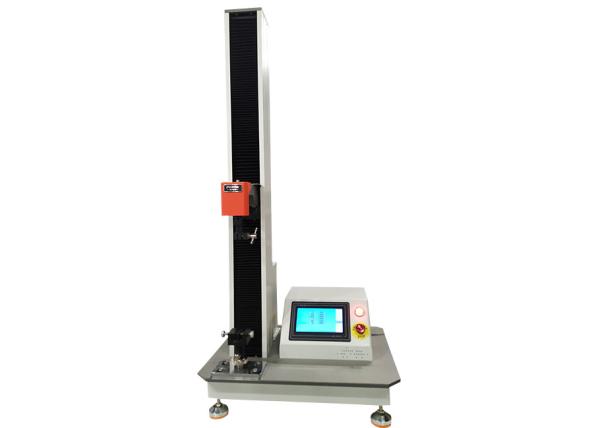

Electronic Tensile Machine Picture:
Test Items :
Tensile stress, tensile strength, tensile strength, elongation at
break, constant tensile stress,
constant stress elongation, tear strength, adhesion, pressure test,
shear force, peel force,
bending, puncture force , Modulus of elasticity, yield strength
