1000KN Universal Testing Machine Tensile Compress Bend Force Test

Machine Introduction :

1000KN Universal Testing Machine Tensile Compress Bend Force Test , dedicated to the mechanical performance test of prestressed steel strands, this machine is equipped with Lenovo computer, brand printer, large gauge electronic extensometer, photoelectric encoder and fully functional general test software. It can easily complete the test function; it can measure the tensile strength Rm of the steel strand, the specified plastic extension strength Rp0.2, the elastic modulus E and the maximum force elongation and other mechanical properties; it is also equipped with a special lengthened jaw for the steel strand Ensure that the sample is broken in the middle (if the steel strand breaks in the clamping jaws, the measured tensile strength value is lower than the true value). So as to further improve the test success rate. The test results can be queried and printed (force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, deformation-time) six types of curves and related test data, with software self-checking function and self-diagnosing faults. It can measure the tensile strength, specified non-proportional extension strength, elastic modulus, elongation and other mechanical properties of steel strands. 1000KN microcomputer controlled electro hydraulic servo testing machine is an ideal testing equipment for industrial and mining enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.

1000KN Universal Testing Machine Detailed Paramaters :

Configuration List Of 1000KN UTM :

1. Machine Host: Under cylinder type, four columns and two screws, base integral casting.

2. Load Cell: 1000KN

3. Compress Plate: Φ160mm

4. Hydraulic pressure source

5. Servo pump unit

6. Software testing system

7. Displacement sensor, pull wire photoelectric encoder

8. Computer: Lenovo

9. User manual, qualified certificate, packing list

10. Clamping action: hydraulic tightened

11. Defend the net

12. Round specimen tensile clamp: Φ13 - Φ26mm, Φ26 - Φ40mm,Flat specimen tensile clamp: 0-15mm

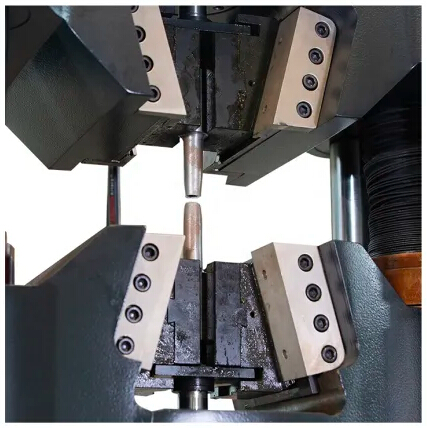

100T UTM Refer Detailed Pictures :
