Multi Lights Color Comparison Box JIS Z8110 Colour Contrast Cabinet
Introduction Of Color Comparison Light Box :
Standard light source color matching light boxes are widely used in
textiles, printing and dyeing, printing, plastics, pigments,
paints, inks, photography and other color fields to accurately
check the color deviation of goods.
Because different light sources have different radiant energy, they
will show different colors when irradiated on the object. In the
color management of industrial production, although quality
inspectors have carefully compared the colors of goods, because the
environmental light source is not standard or inconsistent with the
light source used by the merchants, the colors seen under different
light are different, and the color difference of the goods is
difficult determination. When inspecting the goods, merchants will
complain or even return the goods because the color difference
exceeds the standard range, which seriously affects the company's
goodwill.
To effectively solve the above problems, the most useful method is
to verify the color of the goods under the same light source and
controllable conditions. For example, artificial daylight D65 is
often used in international general standards as the standard light
source for evaluating the color of goods. The color comparison box
plays an more imprtant role.
Especially during night shifts, it is especially important to use
standard light sources to verify the color deviation of goods.
In addition to the D65 light source, the light box also provides
TL84, CWF, UV, F/A and other light sources, which have the function
of testing metamerism.
Meet standards :
GB/T7922,JIS Z8110/8724,CIE 30
Specifications of color match box:
1. Light Sources:
(1). D65 --- International-standard Artificial Daylight
Color temperature:6500K Power:20W
(2).F/A --- Comparison referential light source, Applicable to
family / hotel
Color temperature:2700K Power:40W
(3). CWF (Cool White Fluorescent)
Color temperature:4150K Power:20W
(4). TL84 --- Applicable to stores in Europe, Japan and China
Color temperature:4000K Power:18W
(5). UV ---- Ultraviolet light source
Wavelength:365nm Power:20W
(6)SOURCE : D65*2 ; CWF*2 ; TL84*2 ; UV*1 ; F/A*4
2. Switch: touch switch
3. Integrated timer: Record and display running Time of each light
source lamp.
4. Dimensions: 71×40.5×57cm
5. Weight: 30kg
6. Power: 1PH,AC 220V,50/60Hz

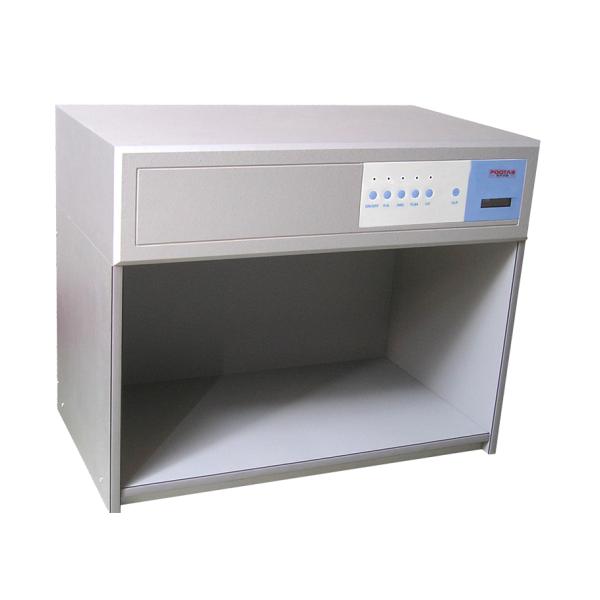

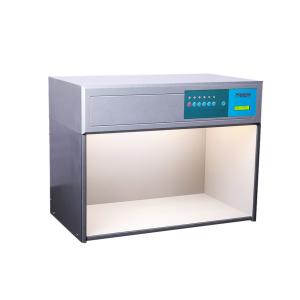

Color Comparison Light Box Photo :
Standard Configuration: D65*2, TL84*2, F*4, UV*1, CWF*2
