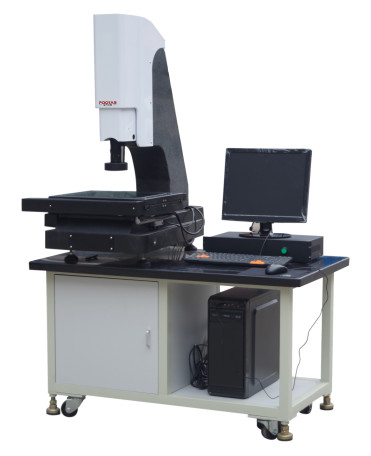

The automatic image testing machine is an artificial intelligence
modern optical non-contact measuring instrument developed on the
basis of the digital image measuring instrument. It inherits the
excellent motion accuracy and motion control performance of digital
instruments, combines the design flexibility of machine software,
and belongs to today's cutting-edge optical size inspection
equipment.
Specification:
| Model | PT-MC3020 |
| Marble table size(mm) | 456*356 |
| Glass table size(mm) | 350*250 |
| Testing stroke(mm) | X:300mm Y:200mm |
| Focusing stroke(mm) | (Z axis)150mm |
| Measuring and Aiming System | High resolution camera (CCD) 1/3" color CCD 600TV |
| Zoom objective lens magnification: 0.7-4.5X working distance: 90mm |
| Video magnification: 30-225X Display resolution: 0.0005mm |
| Professional accurate 2.5D automatic measurement software |
| Indication error | X.Y≤(3+L/200)um, (L is the measured length unit: mm) |
| Repeated measurement accuracy | 0.003MM |
| Lighting system | Both the surface light source and the transmission light source are
LEDs with adjustable brightness. |
| Dimension(mm)(W×D×H) | 820*580*1100 |
| Weight(kg) | 225kg |
| Glass table bearing | 15kg |
| Power | AC220V, 50HZ |
Application software part:
1. Measurement and evaluation of geometric elements:
1) Flexible positioning: alignment, rotation, zero setting,
translation and storage and retrieval of the coordinate system.
2) Geometric element measurement and evaluation: point, straight
line, plane, circle, ellipse, intersection, distance, symmetry,
vertical, included angle.
3) Evaluation of form and position errors: straightness, flatness,
and roundness.
4) Evaluation of position errors: parallelism, perpendicularity,
inclination, concentricity (concentricity), symmetry, position
degree, end face beating, full beating.
2. It can automatically program and measure to improve work
efficiency.
3. Save and print measurement results and measurement reports. The
output format of the measurement report is DXF, Word, Excel, TX,
etc.
4. Window operating system, Chinese operation interface; mutual
conversion between Chinese and English.
5. Optional Renishaw or TESA contact probe to achieve
three-dimensional size measurement; and laser non-contact probe,
instant measurement, fast and accurate measurement of flatness,
size measurement, thickness, warpage, blind hole and counterbore
measurement.
(2) Macro measurement function
The macro measurement function is to associate some measurement and
construction commands to a button. Click the button to start the
macro measurement function. The macro measurement function will
automatically complete the construction action, reducing the number
of times the user operates the mouse and improving work efficiency.
It should be noted that: Macro measurement is different from the
user program function. Macro measurement does not record the
measurement status of light source, coordinate position, etc. When
running the macro measurement function, the workbench will not be
moved, lighting, etc. The software provides 16 groups of macro
measurement functions, and users can edit the icons of the macro
measurement function buttons by themselves. The interface of the
macro measurement function is as follows:
