    1000N Compression Testing Machine With Plate 120mm Diameter

    Ask Lasest Price
    Brand Name : POOTAB
    Model Number : PT-5066
    Certification : ISO,CE,SGS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 250 Sets /Month
    Delivery Time : 7 Working Days After Confirm Deposit
    • Product Details
    • Company Profile

    1000N Compression Testing Machine With Plate 120mm Diameter

    1000N Compression Testing Machine With Plate 120mm Diameter

    Machine Application: This top compression tester is used for testing the compressive strength of packaging bottles and other packaging containers in food processing industry, such beverage bottles, PET plastic bottles, water bottles, medicine bottles, etc. Equipped with corresponding fixture, it can also measure the side pressure performance of the bottle and stretch and tear test of the packaging film.


    Detailed Specifications :

    ModelPT-5066 Compression Testing Machine For Plastic Bottle
    Capacity1000N, 2000N,5000N, any one option
    SoftwareWindows professional software
    Measure Accuracy±0.5%
    Force Resolution1/200,000

    Measurement

    Range

    0.5~100%F.S
    Deformation Display Accuracy±1%
    Test Speed0.5~500mm/min,free set
    Test Travel650mm,exclude fixture/grip
    Effective Test SpaceDia 120mm
    Stop MethodUpper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
    Standard ConfigurationOne set of top compress plate (120mm) , 1 set of thin film tensile clamps, and network line 1 piece, power supply 1 piece, operating instructions 1 set, product certification 1set, warranty card 1 set
    Purchase Configurationmachine not included computer and printer, customer can use their own, or buy from us.
    SizeAbout 57×47×120cm(W×D×H)
    WeightAbout 70kg
    MotorAC Servo Motor (Panasonic, Japan Brand)
    Power Supply1PH,AC 220V,50/60Hz,10A or as cuctomer's specified

    Compression Plate / Panel : square shape or round shape

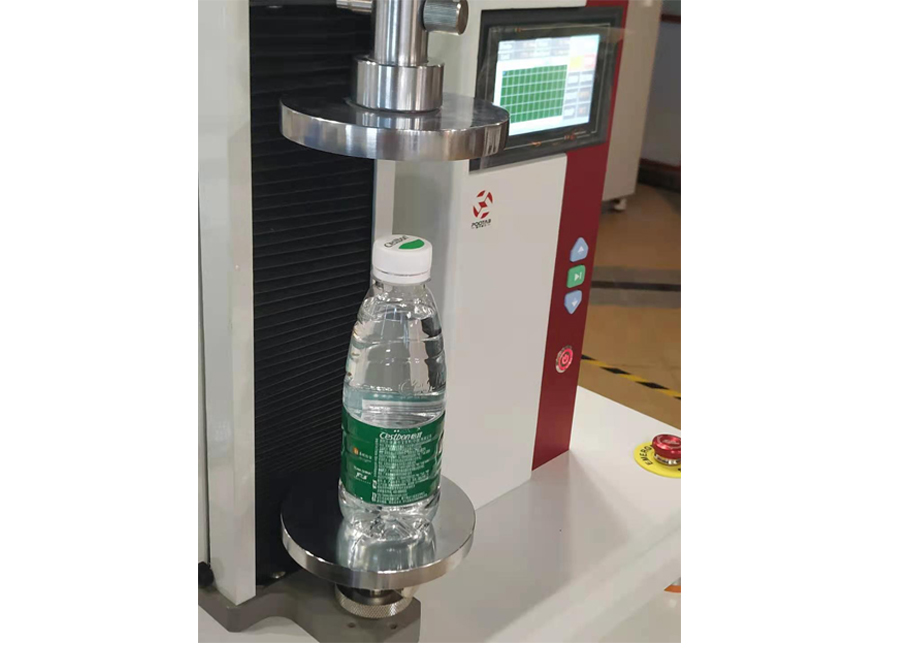

    Pictures of top load test machine :
